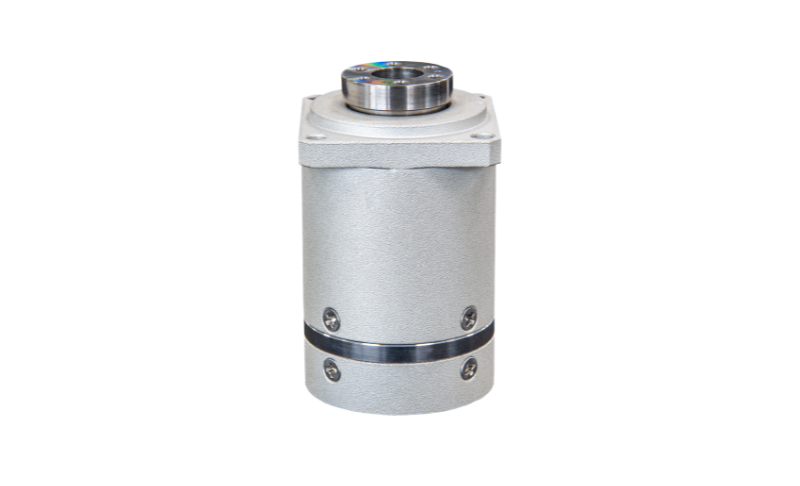

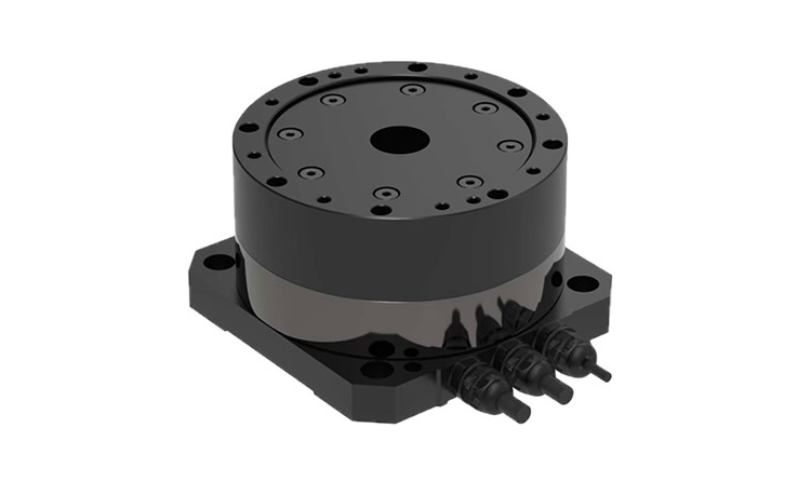

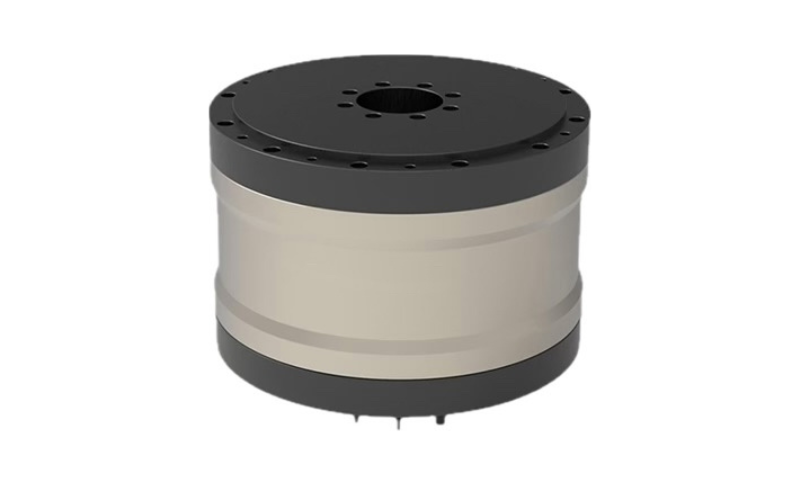

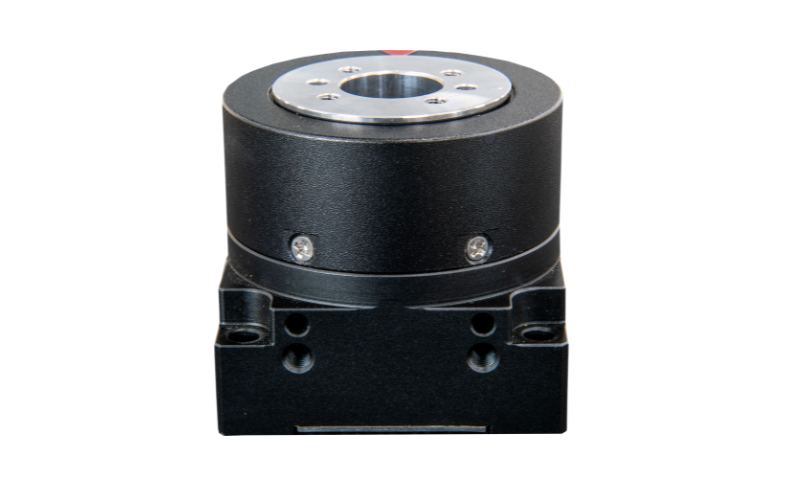

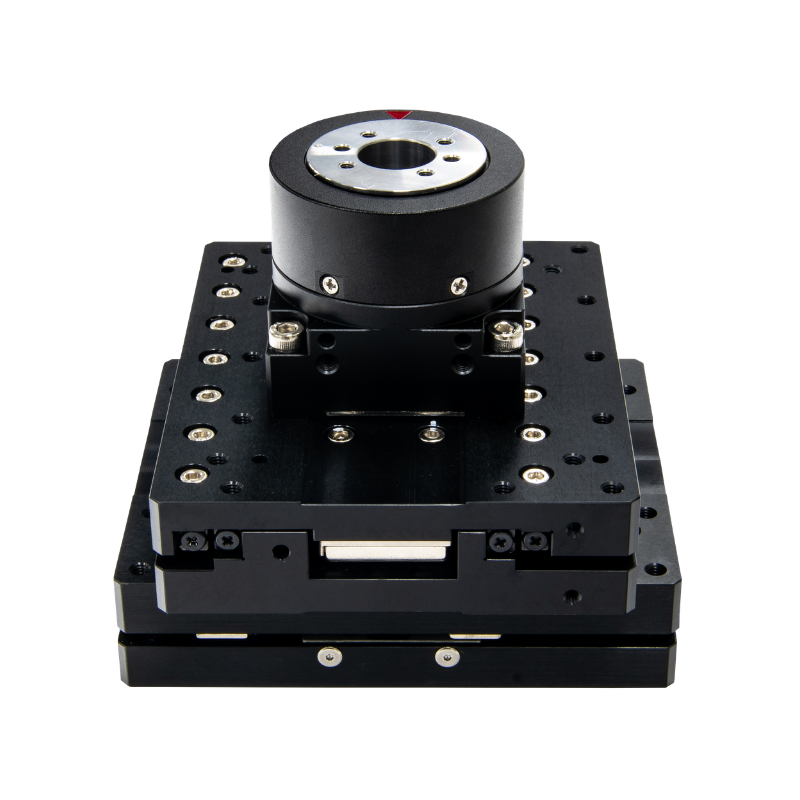

ISDR Series Ironcore Direct-Drive Motor
Description：
- High Axial Load Capacity 130,000N
- Repeatability (arc-sec) ±2
Download file
-
High precision meets high rigidityBuilt on a direct-drive architecture, the ISDR Series delivers high rigidity, high force density, rapid response, and exceptional positioning accuracy. It supports horizontal, vertical, and inverted mounting configurations, providing maximum flexibility for machine builders.
Designed for semiconductor equipment, precision metrology, and automated assembly, it offers stable, consistent motion over extended operating periods.- One motor. Two encoder options.Support both BiSS-C 24-bit absolute encoders and incremental encoders on a single motor, simplifying machine design and improving integration flexibility.
- Dimensions compatible with leading Japanese brandsAligned to mainstream direct-drive motors, reducing redesign effort and accelerating equipment upgrades.
- High positioning accuracy and rigidityBearing preload can be selected based on requirements, effectively reducing backlash and enhancing positioning accuracy and stiffness.
-
Repeatability (arc-sec) ±2 Axial runout (μm) 20 / 10/ 5 Radial runout (μm) 20 / 10/ 5

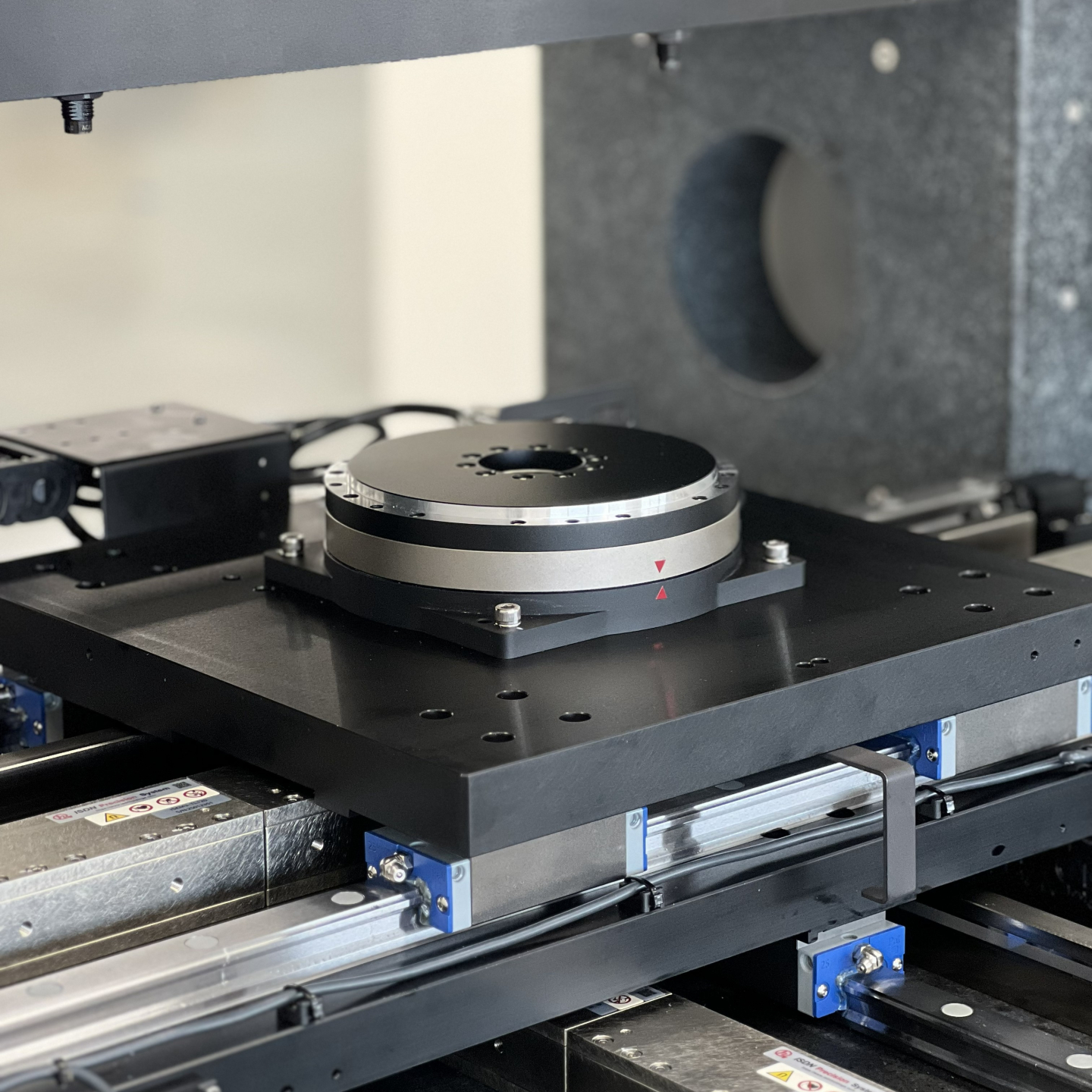

Popular applicationsSemiconductor inspection, industrial screen printing, indexing tables, angular error compensation, industrial robotics, etc.
Outer diameter 50 mm
Max. outer diamater 630 mm
Customizable brake and hollow shaft; Available in flange and flangeless options.
-
ISDR Series Ironcore Direct-Drive Motor

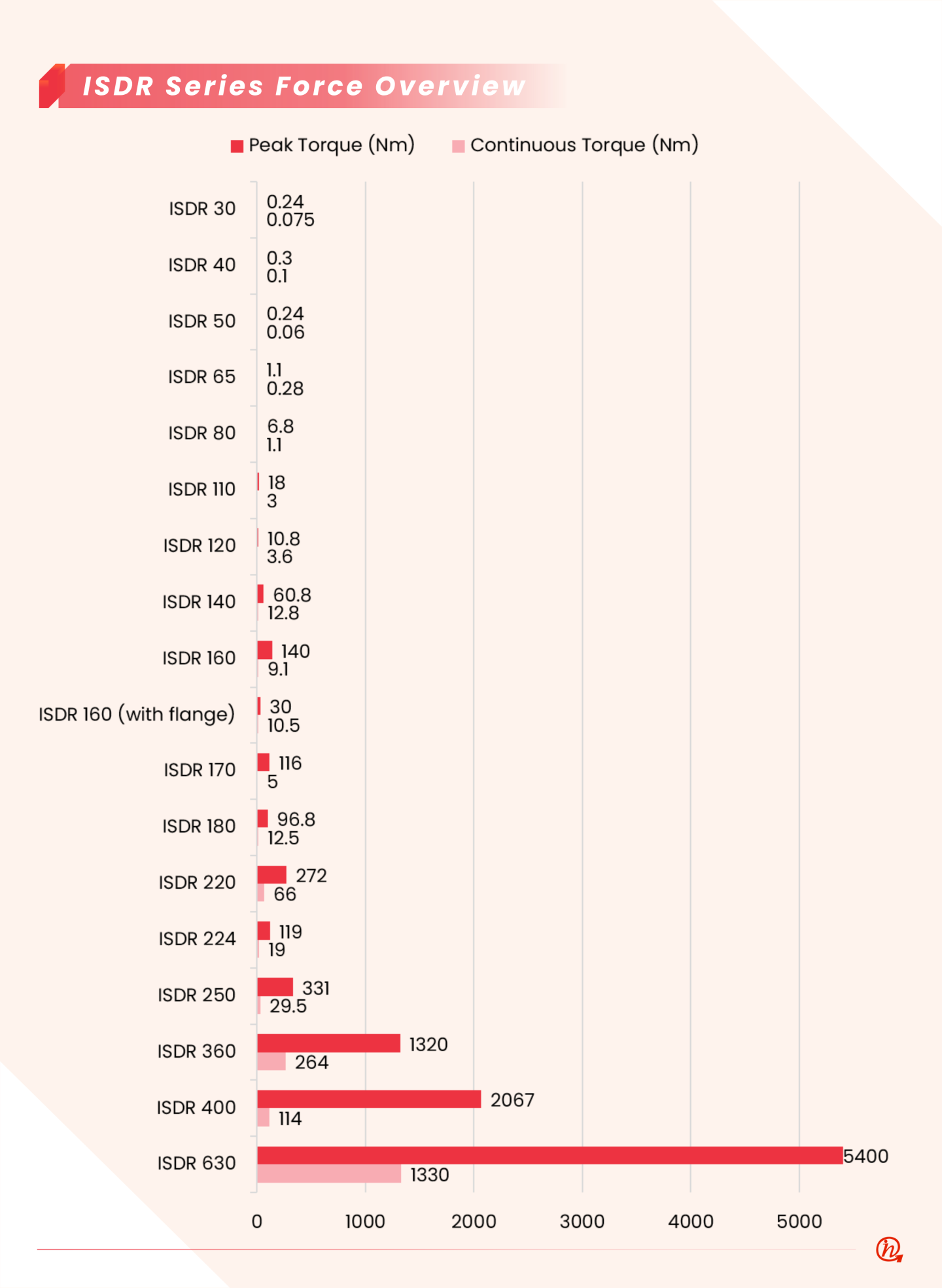

Force Overview
-
DescriptionHigh precision meets high rigidityBuilt on a direct-drive architecture, the ISDR Series delivers high rigidity, high force density, rapid response, and exceptional positioning accuracy. It supports horizontal, vertical, and inverted mounting configurations, providing maximum flexibility for machine builders.
Designed for semiconductor equipment, precision metrology, and automated assembly, it offers stable, consistent motion over extended operating periods.- One motor. Two encoder options.Support both BiSS-C 24-bit absolute encoders and incremental encoders on a single motor, simplifying machine design and improving integration flexibility.
- Dimensions compatible with leading Japanese brandsAligned to mainstream direct-drive motors, reducing redesign effort and accelerating equipment upgrades.
- High positioning accuracy and rigidityBearing preload can be selected based on requirements, effectively reducing backlash and enhancing positioning accuracy and stiffness.
-
Repeatability (arc-sec) ±2 Axial runout (μm) 20 / 10/ 5 Radial runout (μm) 20 / 10/ 5
Popular applicationsSemiconductor inspection, industrial screen printing, indexing tables, angular error compensation, industrial robotics, etc.
Outer diameter 50 mm
Max. outer diamater 630 mm
Customizable brake and hollow shaft; Available in flange and flangeless options.
-
Force Overview
ISDR Series Ironcore Direct-Drive Motor
Force Overview
