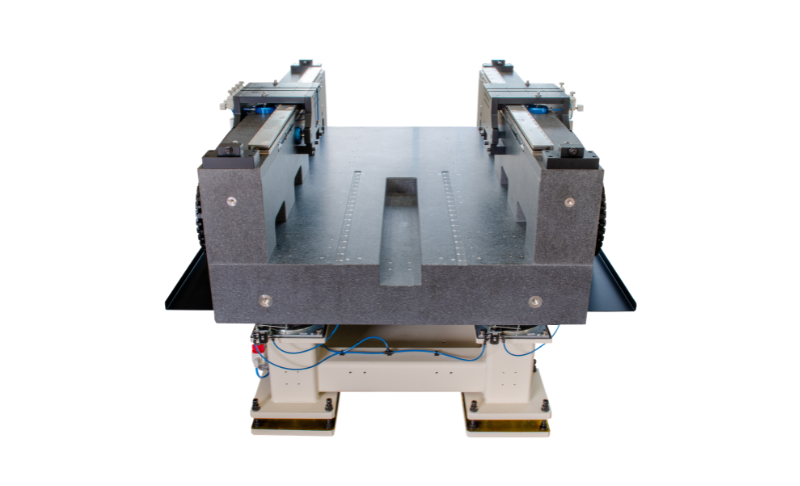

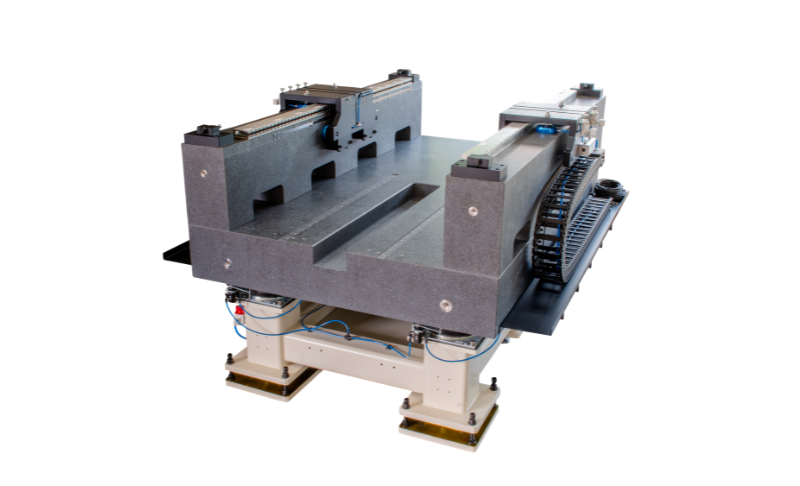

Air Bearing Stage
Description：
- Velocity ripple < 1% at a constant speed of 5 mm/s
- High payload — 350 kg
-
- Advanced Polymer Film ProcessingThis project was developed for advanced polymer film processing applications, including high-precision coating for customer electronics displays, automotive displays, curved panels, and fingerprint sensing.
- To meet the customer's requirements, the stage needed to combine high load capacity with exceptional motion stability.
- Reliable Performance Under Heavy LoadsDesigned to handle payloads of up to 350 kg, the stage maintains velocity ripple < 1% at a constant speed of 5 mm/s, ensuring smooth and stable motion.
- Simulating Real-World Operating ConditionsBefore shipment, we replicated the actual payload conditions in-house and conducted gantry synchronization testing to verify performance prior to installation.
- Mitsubishi Drivers x ISDN Precision System Linear MotorsThe stage integrates Mitsubishi drives with ISDN Precision System linear motors. Our engineering team performed tuning and control optimization to ensure stable and reliable operation.
- Through comprehensive pre-shipment testing, we help customers achieve optimal performance from day one. For us, delivery is not the end of a project—it marks the beginning of ongoing support and collaboration.
- This ODM example from ISDN Precision System was carried out to customer specifications—including design, drafting, assembly, and laser interferometer testing—demonstrating our one‑stop, end‑to‑end development capability.
-
Highly customizable. For more demanding specifications, please reach out to us.
左右尚有資訊Stroke (mm) 1500 Velocity ripple < 1% at constant speed 5 mm/s Repeatability (μm) ±0.3 Straightness (μm) ±0.5 Flatness (μm) ±0.5
-
Description
- Advanced Polymer Film ProcessingThis project was developed for advanced polymer film processing applications, including high-precision coating for customer electronics displays, automotive displays, curved panels, and fingerprint sensing.
- To meet the customer's requirements, the stage needed to combine high load capacity with exceptional motion stability.
- Reliable Performance Under Heavy LoadsDesigned to handle payloads of up to 350 kg, the stage maintains velocity ripple < 1% at a constant speed of 5 mm/s, ensuring smooth and stable motion.
- Simulating Real-World Operating ConditionsBefore shipment, we replicated the actual payload conditions in-house and conducted gantry synchronization testing to verify performance prior to installation.
- Mitsubishi Drivers x ISDN Precision System Linear MotorsThe stage integrates Mitsubishi drives with ISDN Precision System linear motors. Our engineering team performed tuning and control optimization to ensure stable and reliable operation.
- Through comprehensive pre-shipment testing, we help customers achieve optimal performance from day one. For us, delivery is not the end of a project—it marks the beginning of ongoing support and collaboration.
- This ODM example from ISDN Precision System was carried out to customer specifications—including design, drafting, assembly, and laser interferometer testing—demonstrating our one‑stop, end‑to‑end development capability.
-
Specifications
Highly customizable. For more demanding specifications, please reach out to us.
左右尚有資訊Stroke (mm) 1500 Velocity ripple < 1% at constant speed 5 mm/s Repeatability (μm) ±0.3 Straightness (μm) ±0.5 Flatness (μm) ±0.5
