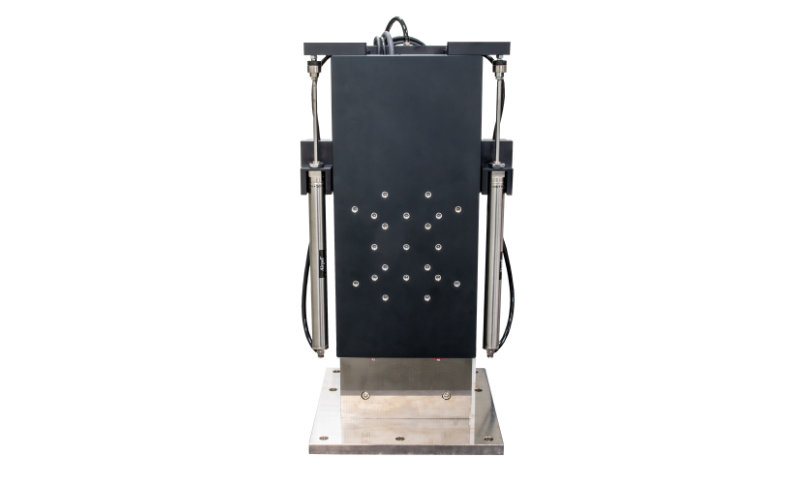

Z Axis Pneumatic Brake Positioning Module

The Z-axis pneumatic brake positioning module is designed for vertical motion applications that demand nanometer-level control, carry high-value workpieces, and cannot risk unexpected downward drift or free fall. It's the ideal solution for precision tools, inspection equipment, and any system requiring both safety and ultra-high accuracy.

• Pneumatic Brake Mechanism
  A low-friction pneumatic counterbalance paired with a precision regulator ensures reliable Z-axis holding force. In the event of a power loss, air supply interruption, or system error, the mechanism automatically locks the Z-axis, preventing the workpiece from dropping and protecting both equipment and operators.
• Nanometer-Level Positioning System
  Equipped with a high-resolution optical encoder and directly driven by a linear motor, the module delivers sub-micron to nanometer-level vertical positioning performance—ideal for advanced processing and measurement tasks.
• Low-Interference Structural Design
  The braking mechanism is mechanically isolated from the guiding system, ensuring that engaging the brake does not affect motion accuracy or optical measurement results. It makes this module especially suitable for applications requiring extremely stable motion, precision alignment, or sensitive metrology.
