ISCM Series Ironcore Linear Motor
Description：
- Max. Continuous Force 698N
- Peak Force 2454N
- High force densityOptimized magnetic circuit design provides stronger thrust and higher acceleration.
- Low heat generation designImproved heat dissipation significantly reduces operating temperatures, extending equipment lifespan.
- Optimal design of cogging forceSmooth motion and noise-free operation at low speeds.
Download file
-

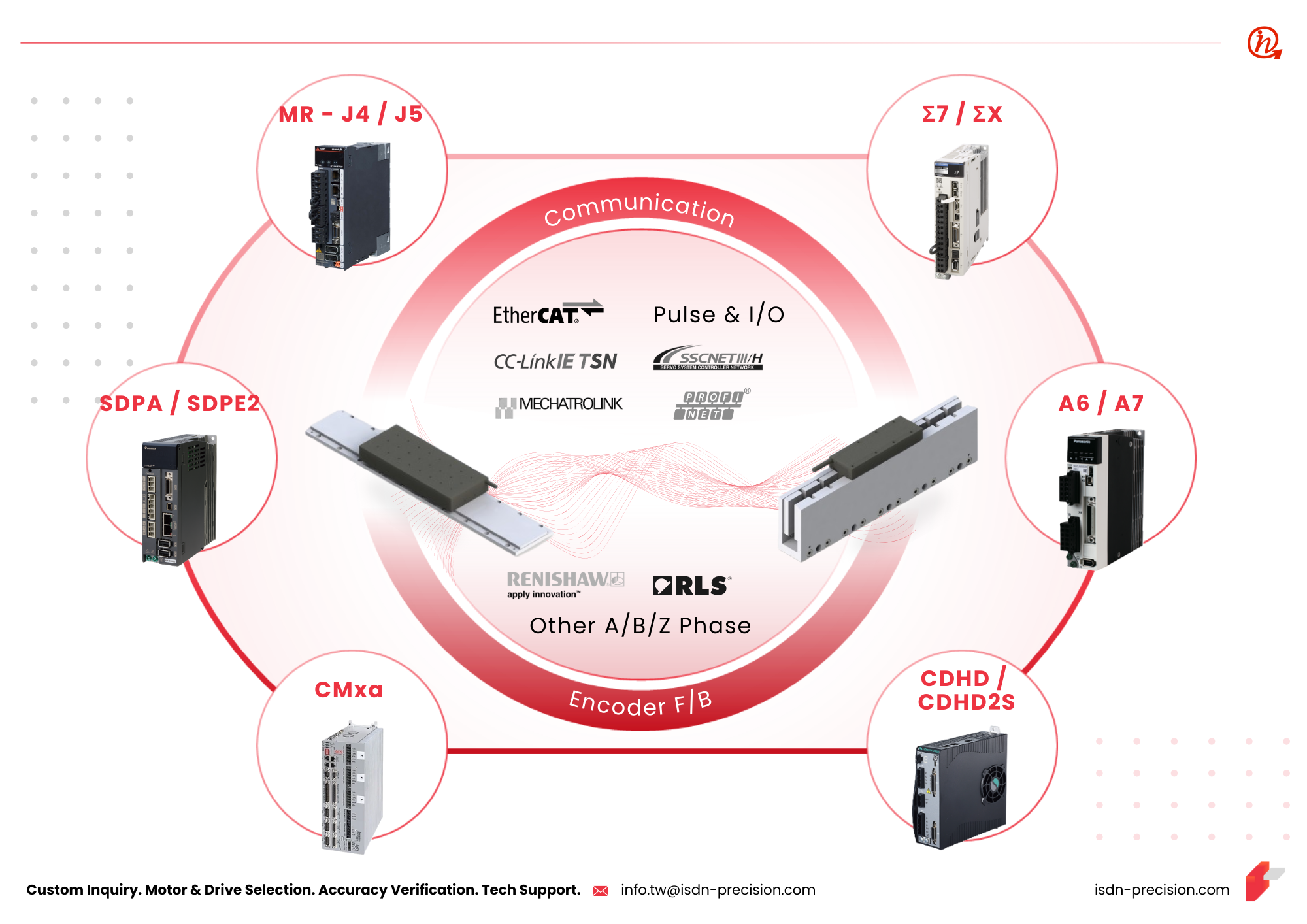

The Industry's Most Compatible Linear Motors
- Seamlessly compatible with international driver brands such as Mistubishi (MR - J4 / J5), Shihlin (SDPA / SDPE2), ACS (CMxa), Servotronix (CDHD / CDHD2S), Panasonic (A6 / A7), Yaskawa (Σ7 / Σ10).
- Widely applicable across major communication interfaces, including EtherCAT, CC-Link, MECHATROLINK, Pulse & I/O, SSCNET III/H, and PROFINET.
- Supports common encoder feedback devices such as Renishaw, RLS, and other A/B/Z incremental encoders.
- High force outputIdeal for various electric tools such as laser processing machines, cutting machines, and transfer equipment.
- Maintenance-freeDirect-drive design with no mechanical contact, resulting in low wear and zero maintenance costs.
- Implement rigorous quality inspectionAt ISDN Precision System, we don't rely on sampling. Every linear motor goes through 100% PQC and FQC inspection, no exceptions. On top of that, the dynamic performance tests, insulation tests, and hipot tests all meet UL and CE compliance requirements.
-
ISCM Series Ironcore Linear Motor

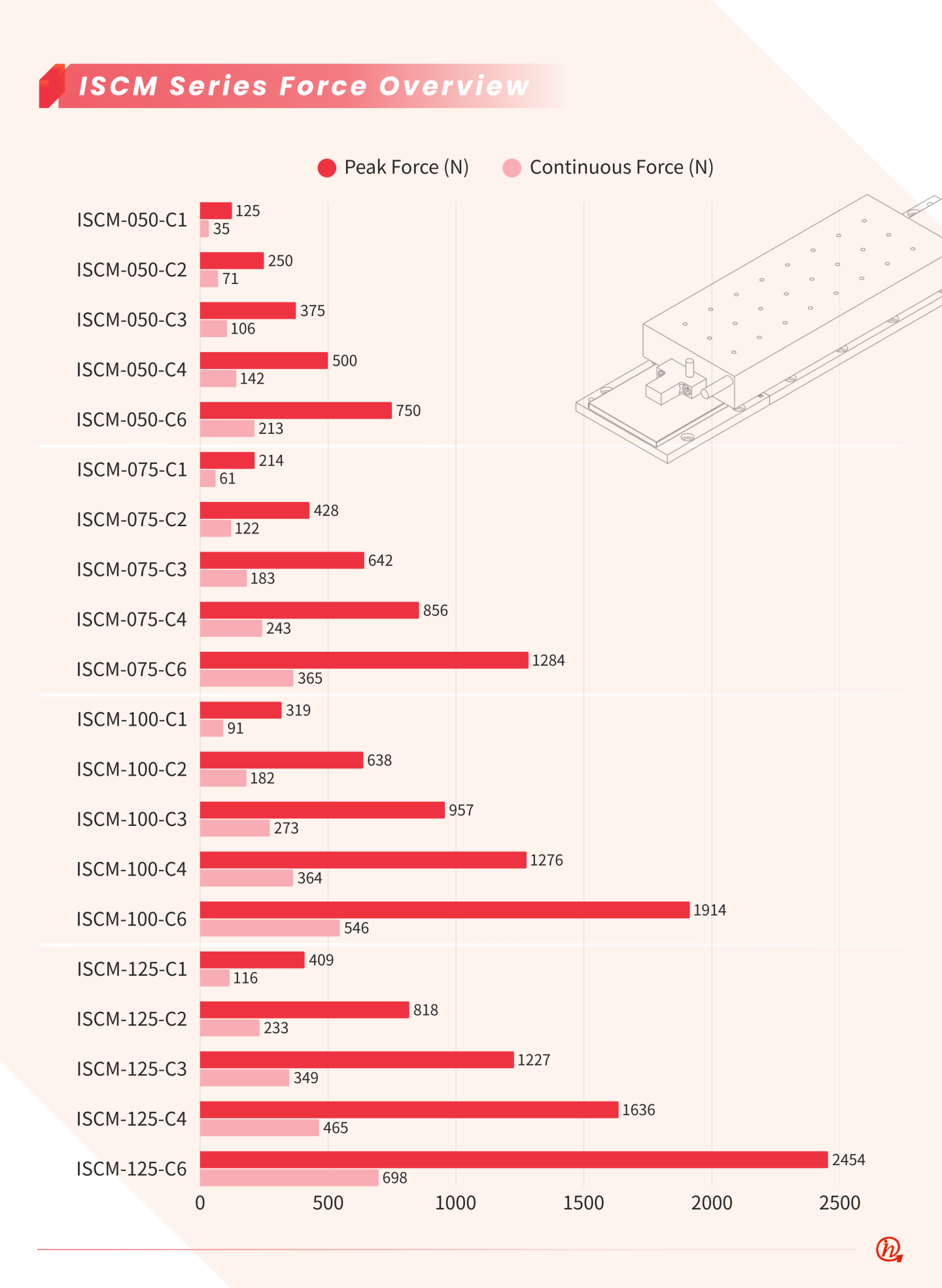

Force Overview
-
DescriptionThe Industry's Most Compatible Linear Motors
- Seamlessly compatible with international driver brands such as Mistubishi (MR - J4 / J5), Shihlin (SDPA / SDPE2), ACS (CMxa), Servotronix (CDHD / CDHD2S), Panasonic (A6 / A7), Yaskawa (Σ7 / Σ10).
- Widely applicable across major communication interfaces, including EtherCAT, CC-Link, MECHATROLINK, Pulse & I/O, SSCNET III/H, and PROFINET.
- Supports common encoder feedback devices such as Renishaw, RLS, and other A/B/Z incremental encoders.
- High force outputIdeal for various electric tools such as laser processing machines, cutting machines, and transfer equipment.
- Maintenance-freeDirect-drive design with no mechanical contact, resulting in low wear and zero maintenance costs.
- Implement rigorous quality inspectionAt ISDN Precision System, we don't rely on sampling. Every linear motor goes through 100% PQC and FQC inspection, no exceptions. On top of that, the dynamic performance tests, insulation tests, and hipot tests all meet UL and CE compliance requirements.
-
Force Overview
ISCM Series Ironcore Linear Motor
Force Overview
